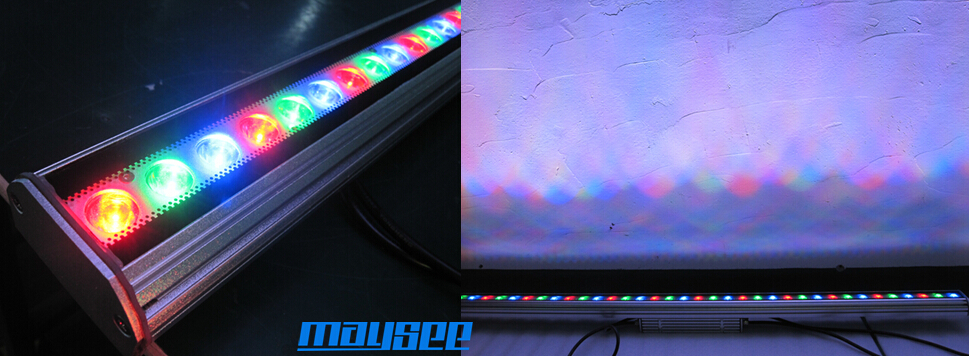

18W High Power LED Wall Washer Lights with Cree led and DMX512 for
building outline
Specification
Electric
Parameter | Max.Power | 18W |
| LED Drive Current | 350mA |
| Input Voltage | AC220V/AC110V |
| Power Efficiency | >90% |
Environment
Parameter | Humidity | 0～85%RH |
| Storage Temp. | -40°～+80° |
| Operating Temp. | -25℃～ +50℃(-13°F ～ +122°F) |
| Physical Parameter | Dimension | 624mm(2ft)x75mm(W)x75mm(H) |
| Weight | 2.5kg |
| Material | aluminum & tempered glass |
| Housing Color | silver |
| IP Grade | IP65 |
Optical
Parameter | LED Brand | CREE XPE |
| LED Unit Power | 1W |
| LED Quantity | 18pcs |
| Light Source | 6R6G6B/18R/18G/18B/18W/18Y |
| Lens Angle | 25°/ 40°/ 60°/25°x45° |
| White Color Temperature | Warm White(2700～4000K);
Pure White(4000～5000K);
Cool White(>5000K) |
| LED Wave Length | Red: 620 - 630nm;
Green:520 - 525nm;
Blue:465 - 470nm;
Amber:590 - 595nm |
| Life Time | 50,000hrs |
| Controller | DMX512 / On-Off |
Features
1. Aluminum housing
2. With 110V/220VAC high-power input
3. Up to 50,000hrs long life-span
4. Easy for cable connection and installation layout
5. Both RGB & mono-color are available
6. IP65
Advantages
1. Private tool with nice appearance design and feasible mechanical
assembly
2. With thick enough anodized aluminum housing to go for better
heat-dissipation
3. High-power led suitable for outdoor night visual effect
Application
Architecture building, bridge, commercial area, museum, road, park,
garden, etc.
Description
MS-WW-RGB-C comes with separated led strip and power drive design,
in the purpose of having the light work with 110VAC/220VAC
directly.
With LEDLink lens, Cree led, Meanwell power supply and tempered
glass to go for high performance and reliability.
Maysee provides 2-year warranty and the best competitive technical
solution accord with any special requirement from customers.
Mono-color with simple "on/off" switch control and RGB multi-color
will be mostly run via DMX512 system.
18W is the most popular model preferred by customer as both the
indoor and outdoor decorative wall washers, widely used for
shopping mall, bridge, park and garden, etc.
