Outdoor RGBW(4-in-1) Aluminum LED Wall Washer Lights with
waterproof and DMX control
Specification
| Model No.: MS-WW-RGB-C(6x4W) |
Electric
Parameter | Max.Power | 6x4W |
| LED Drive Current | 4x350mA |
| Input Voltage | AC220V/AC110V |
| Power Efficiency | >90% |
Environment
Parameter | Humidity | 0～85%RH |
| Storage Temp. | -40°～+80° |
| Operating Temp. | -25℃～ +50℃(-13°F ～ +122°F) |
| Physical Parameter | Dimension | 323mm(1ft)x75mm(W)x75mm(H) |
| Weight | 1.2kg |
| Material | aluminum & tempered glass |
| Housing Color | silver |
| IP Grade | IP65 |
Optical
Parameter | LED Brand | CREE MCE |
| LED Unit Power | 4W |
| LED Quantity | 6pcs |
| Light Source | RGBW(4-in-1) |
| Lens Angle | 25°/ 40°/ 60°/25°x45° |
| White Color Temperature | Warm White(2700～4000K);
Pure White(4000～5000K);
Cool White(>5000K) |
| LED Wave Length | Red: 620 - 630nm;
Green:520 - 525nm;
Blue:465 - 470nm;
Amber:590 - 595nm |
| Life Time | 50,000hrs |
| Controller | DMX512 / On-Off |
Application
Architecture building, bridge, commercial area, museum, road, park,
garden, etc.
Features
1. Aluminum housing
2. With 110V/220VAC high-power input
3. Up to 50,000hrs long life-span
4. Easy for cable connection and installation layout
5. Both RGB & mono-color are available
6. IP65
Advantages
1. Private tool with nice appearance design and feasible mechanical
assembly
2. With thick enough anodized aluminum housing to go for better
heat-dissipation
3. High-power led suitable for outdoor night visual effect
Description
MS-WW-RGB-C comes with separated led strip and power drive design,
in the purpose of having the light work with 110VAC/220VAC
directly.
With LEDLink lens, Cree led, Meanwell power supply and tempered
glass to go for high performance and reliability.Maysee provides
3-year warranty and the best competitive technical solution accord
with any special requirement from customers.
RGBW(4-in-1) multi-color with color-changing will mostly run via
DMX512 system.
6x4w & 12x4w are the most popular model preferred by customers both
the indoor and outdoor decorative wall washers, widely used for
shopping mall, bridge, park and garden, etc.

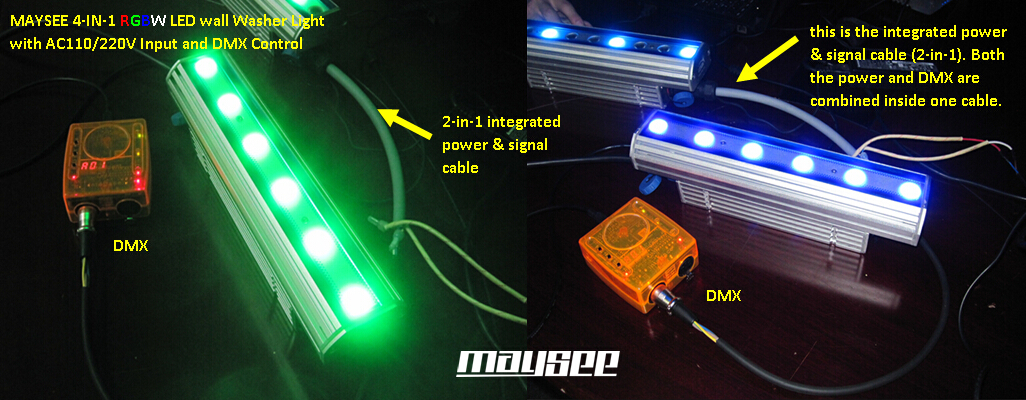

Below just shows how to do the cable connection between DMX512 and
led wall washer lights.
The big difference between Maysee's led wall washer light and
others'. Then you'll see what we do and why us.
