12VDC IP68 RGB Underwater LED Boat Lights with WIFI control for
yacht / marine
Specification
| Model No. | MS-UW-RGB-D | MS-UW-RGB-D |
| Input Volatage | constant current | constant current |
| Dimension | ￠89mmxH26mm | ￠89mmxH26mm |
| Material | 316 stainless steel & tempered glass |
| N.W. | 1.0 kg | 1.0 kg |
| LED Type | CREE XPE | CREE XPE |
| LED Q'ty | 6pcs | 6pcs |
| LED Unit Power | 1w | 3w |
| Rated Power | 6x1w | 6x3w |
| Drive Current | 350mA | 700mA |
| Beam Angle | 25°/ 40°/ 60°/ 80°/100° |
| Light Source | 2R2G2B/6R/6G/6B/6W |
| Operation Temperature | -25℃ - +50℃ |
| Life Time | 50,000 hrs |
| IP Rating | IP68 |
| Control Interface | constant current |
| Control Mode | DMX/WiFi/on-off |
| Installation | surface-mounting via screws |
Features
1. Unique design with nice appearance for decorative use
2. Simple cable connection for installation
3. 12VDC input accord with the boat power system
4. High-precision mechanical design as well as the sealing ring
make the light well working under the
water 10-meter distance with water-proof and corrosion-proof.
5. Cree leds and LEDLink lens adopted for this series to go for
high-reliability and 2-year warranty.
6. Cable outlet is able to be designed for both side and back of
the light.
Advantages
1. 316 stainless housing made by Maysee's private tool
2. Processed via CNC to keep high precision
3. Constant current electronic design helpful for saving the
maintenance cost
4. Surface-mount via screws for easy-instalaltion
Application
Boat, marine, fishing dock, yacht, etc.
Surface-mounting
Description
Maysee has created and expanded its underwater lighting to the
marine business scope. With its surface-mounting service and advanced CNC technology,
underwater lightings are easy to be installed and maintenance. The
rigid and unique-shaped stainless steel housing with seal &
silicone rubber embedded, along with its perfect mechanical
configuration performs IP68 water resistance and widely applied for
ocean boat, fishing dock, yacht, etc.

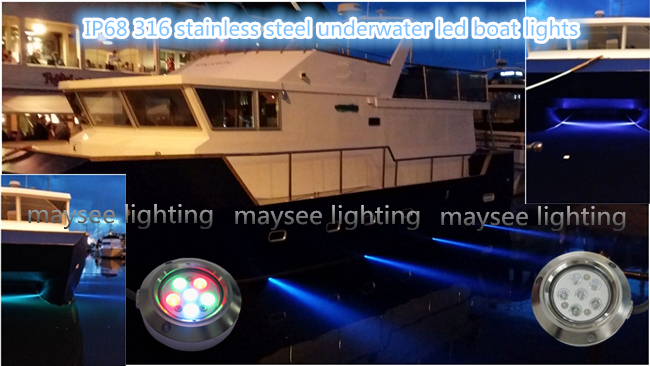

Below is the real projects of which the lights made by our customer
in EU market.
