Surface-mounted IP65 Outdoor RGB LED Flood Light 36w / 72w / 144w
with DMX control
Specification
| Model No.: MS-FLD-RGB-A |
| Max.Power | 36x1w | 72x1w | 144x1W |
| LED Drive Current | 350mA | 350mA | 350mA |
| Input Voltage | AC110V/AC220V |
| Power Efficiency | >90% |
| Environment Humidity | 0～85%RH |
| Storage Temp. | -40°～+80° |
| Operating Temp. | -25℃～ +50℃(-13°F ～ +122°F) |
| Length | 340mm(1ft) | 636mm(2ft) | 1260mm(4ft) |
| WidthxHeight | 150mm(W)x172mm(H) |
| Weight | 7.2kg | 7.6kg | 14.5kg |
| Material | aluminum & tempered glass |
| Housing Color | silver |
| IP Grade | IP65 |
| LED Brand | CREE XPE / Epistar |
| LED Unit Power | 1W | 1W | 1W |
| LED Quantity | 36pcs LEDs | 72pcs | 144pcs LEDs |
| Light Source | 12R12G12B/36W | 24R24G24B/72W | 48R48G48B/144W |
| Lens Angle | 10°/15°/25°/ 45°/ 15°x50° |
| Life Time | 50,000hrs |
| Controller | DMX512 / on-off |
Competitive Advantages
1) Using ultra-bright highest level Cree/Epistar LED chips with
proprietary encapsulation technology,
realizing excellent luminance, low brightness decline;
2) Constant-current driver is used to ensure the lamp working with
reliability and stability.
3) Scientifically-designed heat dissipater with much better cooling
effect;
4) Great energy-saving effect, save energy by over 70% comparing
with traditional lamps;
5) Lamp surface treated with anodized, corrosion-resistant,
artistic appearance.
6) Long lighting distance and wide lighting areas
Features
1. Extruded anodized aluminum housing helpful for heat dissipation
2. Clear lens with multi-angle to get better light uniformity
3. Long life-span & high-reliability LEDs adopted
4. Multi-positional & constant torque mounting
5. RGB color-changing & mono-color light source
7. IP65
Application
1. Building & bridge decoration or outline shining
2. Sports & advertisement occasions
3. Plaza & park

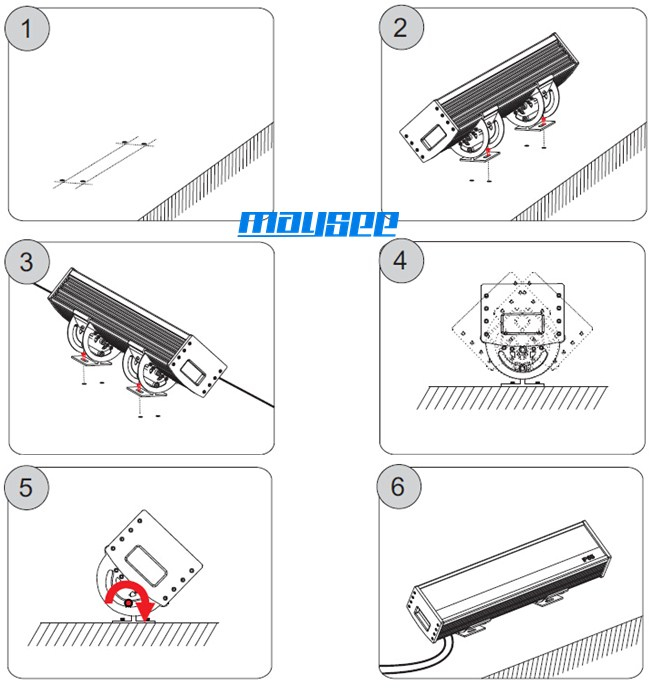

Installation
The RGB Color-changing Effect
