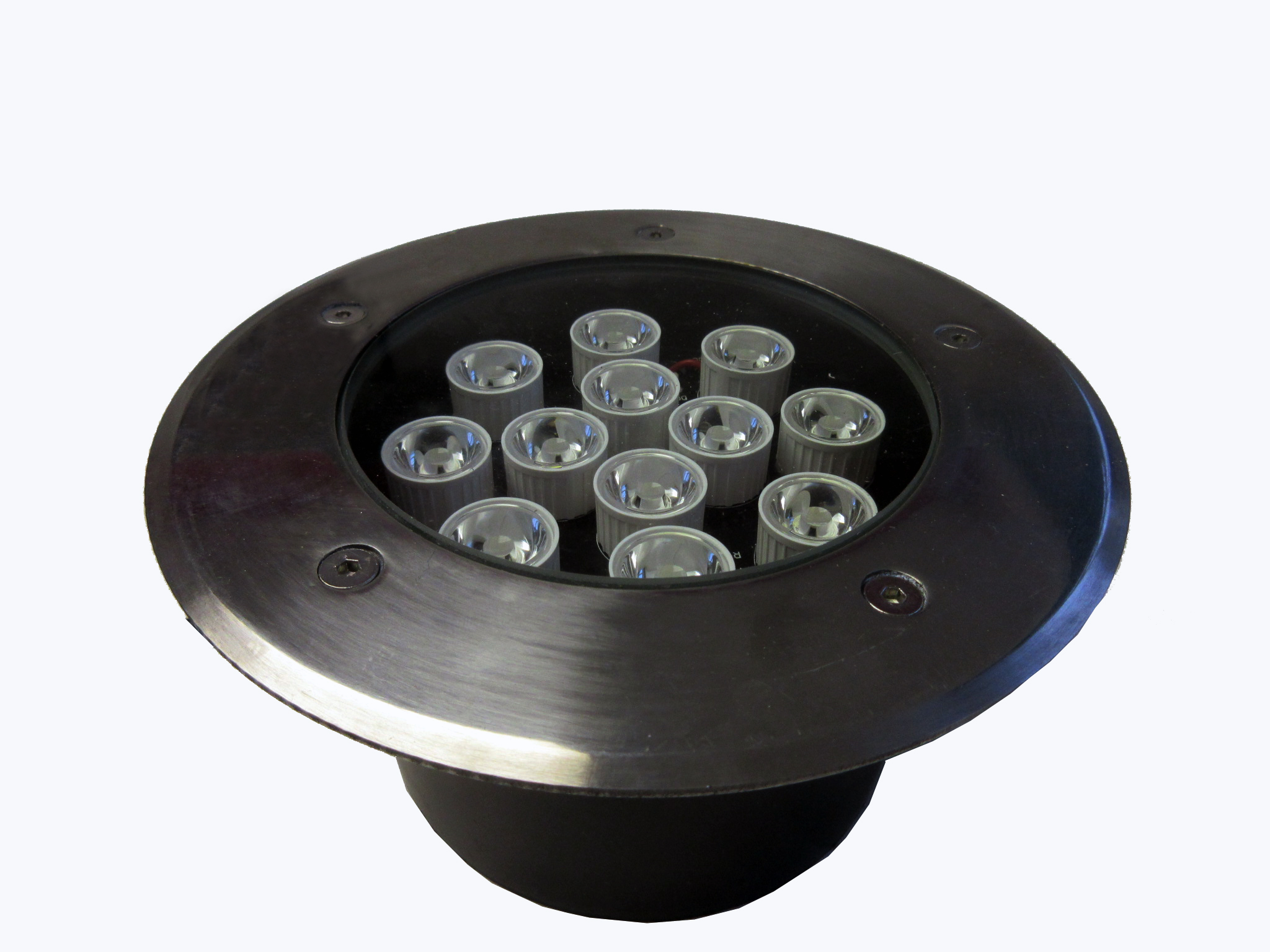

IP68 LED underground lights / LED Inground Lights with recessed
installation
Advantages
1. High Luminous efficiency, long life-time.
2. Anti dust/Anti collision/waterproof
3. the shell Made by 316 stainless steel and aluminum
4. Good Sealing performance, IP68, 100% Waterproof
5. Using the latest high- efficiency thermal structure of the high
power led.
6. Life time more than 30000hrs
7. 2-year warranty
Specification
| Model No. | MS-IG-SRGB-12W |
| LED Q'ty | 12pcs |
| LED Type | high power (1w/pc) |
| Beam-angle | 15°/30°/45°/60° |
| Dimension | ￠180mm x 95(H) mm |
| Material | stainless steel (top) +aluminum(mainbody)+tempered glass cover |
| Input Voltage | 85-265AC or 12V AC/DC |
| Rated Power | Red | 8W |
| Green | 12W |
| Blue | 12W |
| White | 12W |
| RGB | 12W |
| Luminous Flux (Lm) | Red | 280±10％Lm |
| Green | 550±10％Lm |
| Blue | 120±10％Lm |
| White | 950±10％Lm |
| RGB | 350±10％Lm |
| Light Source | RGB/G/B/W |
| Control Mode | DMX/WiFi/External Control/Switch |
| IP Rating | IP68 |
| Warranty | 2-year |
Features
1. Unique structure waterproof, high-grade and artistic, wide
application.
2. IP68 waterproof(structure water-proof)
3. Material: aluminum + stainless steel cover + tempered glass lens
4. Led chip: 1W high power
5. Color: RGB: 14 kinds of color changing mode
6. Single color – white, red, green, blue, yellow
7. 3 kinds of RGB control method: External control (wire control),
WiFi Control, DMX Control,
8. Constant driver to make sure LED light working stable, avoid any
flashing and noisy
9. Voltage:AC/ DC 12V, AC 85-265V Frequency: 50/60HZ
10. Beam angle: 15°/25°/30°/45°/60° for option
11. Life span: >30000 hours
12. Over-current protection
Application
1) Garden
2) Courtyard
3) Club & Stage
4) Parks & Hotel
About Us
MAYSEE's LED Inground LED Lights adopt compact & elegant appearance
design. Made of the stainless steel and aluminum material to meet
the demand of high-precision and anti-corrosion. To keep the high
reliability & long life-span, high-bright LEDs are mostly preferred
and applied for RGB mixed or mono-color illumination. We provide
2-year warranty for all of our products without any minimum order
quantity to strict the initial cooperation.
