LED Deck Light With Heatsink 18W LED Flood Light With 316SS Housing
Work On Ship Deck
The specious design is for the light can be working in the sea! The
housing is full 316L stainless steel material,it resistant to
corrosion by the sea water!!!
Application
On the boat,deck,dock,ship,vessel.
Advantages
1. 316 stainless steel material housing.
2. Each Light pass by IP68 test.
3. All the lights pass by 48h function test and viabration test.
4. CE,Rohs,LVD,UKCA,IP68,EN62560 Certificate.
5. 316L Stainless steel material resistant to corrosion,the light
can work in the sea water.
5. CREE LED chip,Meaneall power driver,the best quality part.
6. A complete solution could be offered according to your project.
7. Customized design are welcome.
Specification
| Model No.: MS-UW-RGB-A18 |
| Max.Power | 18W |
| LED Drive Current | 350mA |
| Environment Humidity | 0～85%RH |
| Storage Temp. | -40°～+80° |
| Operating Temp. | -25℃～ +50℃(-13°F ～ +122°F) |
| Dimension | ￠124mmxH84mm |
| Weight | 1.6Kg |
| Material | 316 stainless steel & tempered glass |
| Housing Color | silver white |
| IP Grade | IP68 |
| LED Brand | CREE XPE |
| LED Unit Power | 3W |
| LED Quantity | 18pcs LEDs |
| Light Source | 6R6G6B/18R/18G/18B/18W |
| Lens Angle | 25°/ 40°/ 60°/ 80°/100° |
| Life Time | 50,000 hrs |
| Control Mode | DMX/WiFi/on-off |
| Niche | PVC embedded sleeve/SS304 tripod |
2D Drawings
Control Mode
RGB/RGBW Light Control By DMX Controller
The RGB light or RGBW light need to be connectd with the external
RGB DMX decoder DCD9 or RGBW DMX decoder DCD8 first. The DCD9
decoder carry 3xRGB lights(9chs), DCD8 carry 2XRGBW lights(8chs).
Also, it is able to be used as a dimmer to adjust the light
brightness as per the environment demand. The DMX controller
connect with DMX decoder, the DMX decoder connect with the
lights,all the DMX decoder connect together to set up the complete
system. The light will be set the address by the decoder. The DMX
decoder have the internal programme to run the color changing,it
also is a DMX controller.
White Light Control By Power On/Off
It's a very simple connection between the switch power supply and
LED underwater light. It is mainly used for showing the mono-color
based on the static & constant working status.

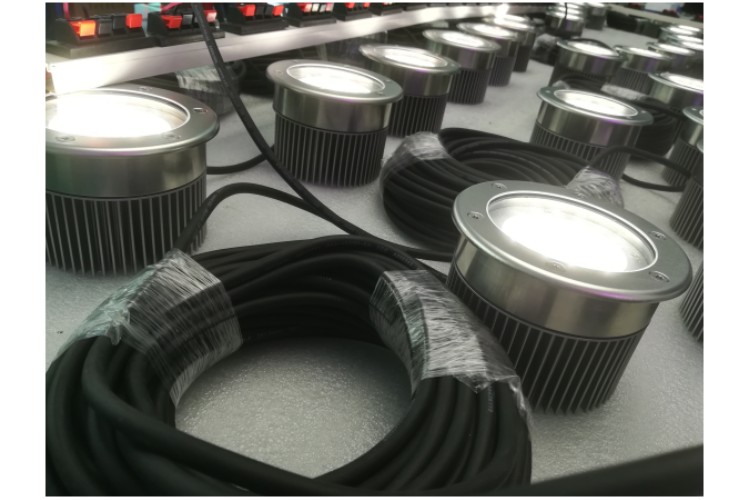

Product Photo
